Fila: manual saw blade for veneering packs

5 October 2021by netorange

FILADescriptionDescription

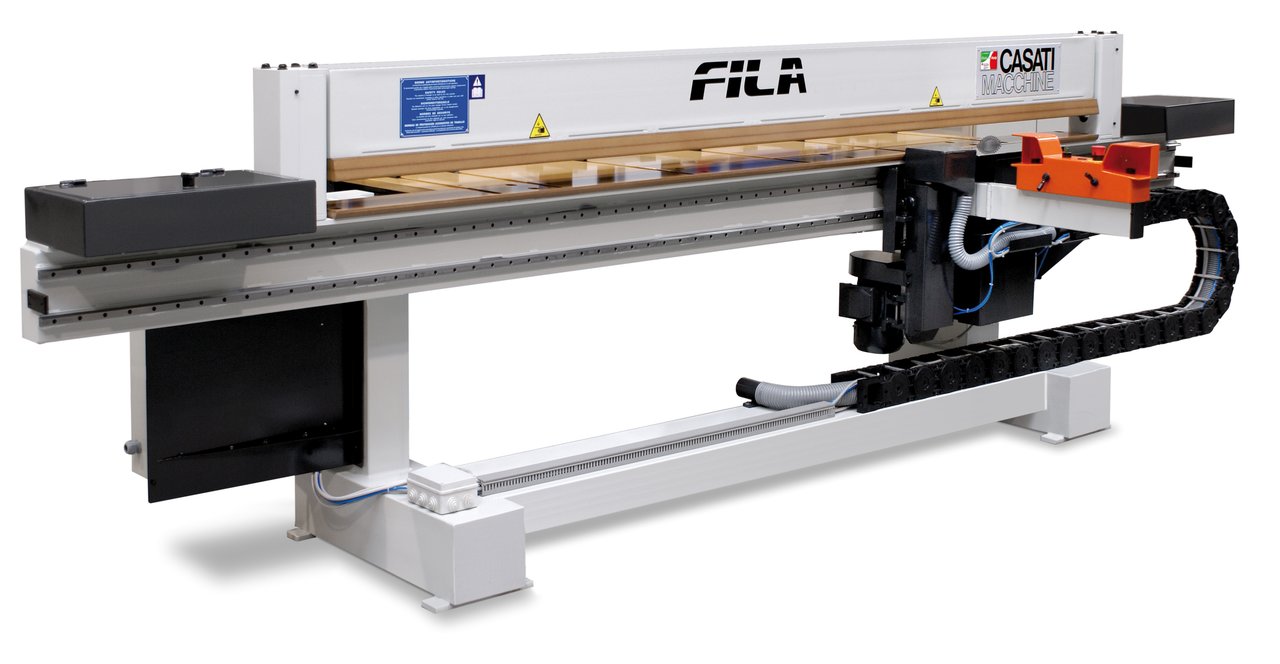

model FILA ** (manual feed)

Cutting and trimming machine for veneer packs, sturdy electro-welded structure, high rigidity under bending and torsion stress, reduced overall wide dimensions thanks to location inside the lower frame of the motors of the mobile units, safety controls.

sezionatrice pacchi impiallacciatura
sezionatrice pacchi impiallacciatura

FeaturesFeatures

https://www.casatimacchine.com/wp-content/uploads/2020/11/img-machine-melting.jpg
  • Saw group (kW 2,2) pneumatically raisable and lowerable
  • Two precision linear guides with recirculating balls for the carriage of the saw unit
  • Mechanical axial adjustment of the blade, adjustment range from 0 to 2 mm without discontinuity
  • Cable chain for compressed air pipes, electrical cables and suction
  • Presser opening 65 mm
  • Motorized feed of the saw unit with feed speed adjustment from 0 to 20 m / minute by means of a potentiometer (on machines mod. FILA ** – A)
  • Two lateral pneumatic cylinders for the ascent and descent of the presser complete with torsion bar

The machine complies with CE standards.

AccessoriesAccessories

STANDARD ACCESSORIES:

  • Suction duct
  • HM-Sega Ø 180 mm
  • Filter-separator lubrication unit with reducing valve and pressure gauge in the compressed air supply point
  • Service keys

ACCESSORIES ON REQUEST:

  • 1.1 kW finishing milling unit complete with milling cutter with HM inserts
  • Rear table with movable register on double precision ball-bearing guides and pneumatic locking
  • Electronic display of distance between register and cutting line
  • Front table for machine only with saw unit
  • Front table for machine with saw unit and cutter unit
  • Laser cutting light

Tecnical featuresTecnical features

Dati tecnici
Technical data
Fila 31Fila 31-AFila 37Fila 37-AFila 43Fila 43-A
Lunghezza utile di taglio
Useful cutting length
mm310031003700370043004300
Apertura pressore
Max. cutting height
mm656565656565
Potenza elettrica
Electric power
Motore avanzamento
Feeding motor
kW--0,55--0,55--0,55
Motore sega circolare
Saw motor
kW2,22,22,22,22,22,2
Motore fresa di finitura
Cutter motor
kW1,11,11,11,11,11,1
Regolazione velocità avanzamento
Feeding speed
adjustment
m/min--0 ÷ 20--0 ÷ 20--0 ÷ 20
Pressione d’esercizio aria compressa
Compressed air
pressure
bar6 ÷ 86 ÷ 86 ÷ 86 ÷ 86 ÷ 86 ÷ 8
Consumo aria compressa
Compressed air
consumption
NI/cycle
Zyclus
222222
Peso
Weight
Kg110012001450155017501850
