FILA/ADescriptionDescription

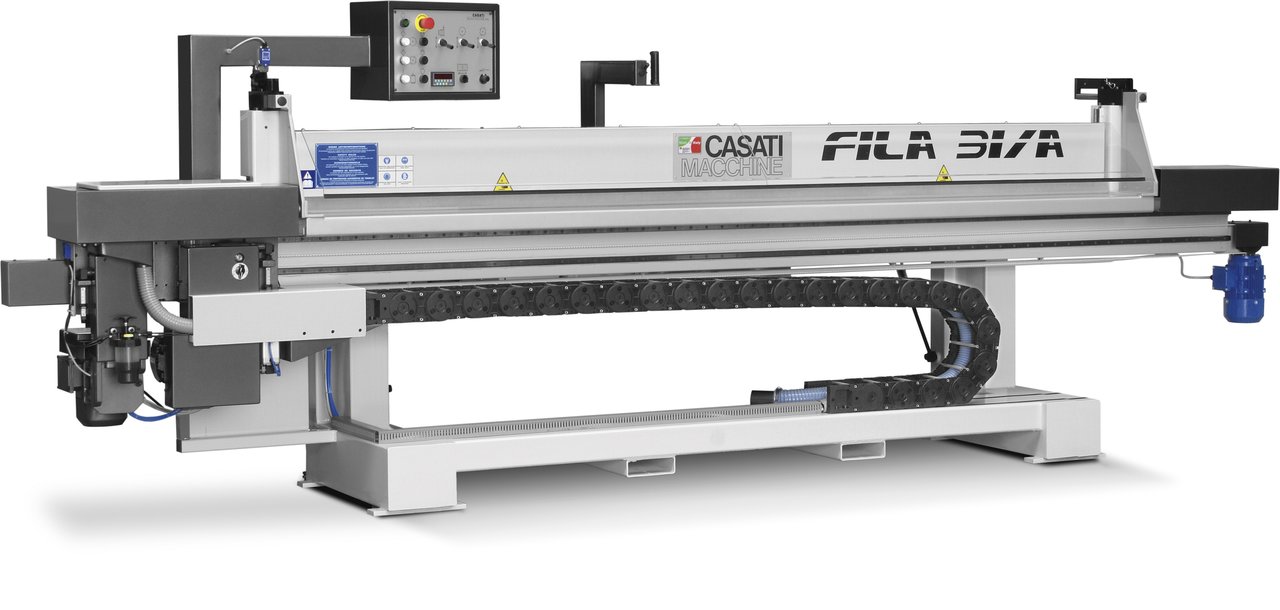

model FILA ** -A (motor feed)
Cutting and trimming machine for veneer packs, sturdy electro-welded structure, high rigidity under bending and torsion stress, reduced overall wide dimensions thanks to location inside the lower frame of the motors of the mobile units, safety controls.
FeaturesFeatures
- Saw group (kW 2,2) pneumatically raisable and lowerable
- Two precision linear guides with recirculating balls for the carriage of the saw unit
- Mechanical axial adjustment of the blade, adjustment range from 0 to 2 mm without discontinuity
- Cable chain for compressed air pipes, electrical cables and suction
- Presser opening 65 mm
- Motorized feed of the saw unit with feed speed adjustment from 0 to 20 m / minute by means of a potentiometer (on machines mod. FILA ** – A)
- Two lateral pneumatic cylinders for the ascent and descent of the presser complete with torsion bar
The machine complies with CE standards.
AccessoriesAccessories
STANDARD ACCESSORIES:
- Suction duct
- HM-Sega Ø 180 mm
- Filter-separator lubrication unit with reducing valve and pressure gauge in the compressed air supply point
- Service keys
ACCESSORIES ON REQUEST:
- 1.1 kW finishing milling unit complete with milling cutter with HM inserts
- Rear table with movable register on double precision ball-bearing guides and pneumatic locking
- Electronic display of distance between register and cutting line
- Front table for machine only with saw unit
- Front table for machine with saw unit and cutter unit
- Laser cutting light
Tecnical featuresTecnical features
| Dati tecnici Technical data | Fila 31 | Fila 31-A | Fila 37 | Fila 37-A | Fila 43 | Fila 43-A | |
|---|---|---|---|---|---|---|---|
| Lunghezza utile di taglio Useful cutting length | mm | 3100 | 3100 | 3700 | 3700 | 4300 | 4300 |
| Apertura pressore Max. cutting height | mm | 65 | 65 | 65 | 65 | 65 | 65 |
| Potenza elettrica Electric power |
|||||||
Motore avanzamento Feeding motor | kW | -- | 0,55 | -- | 0,55 | -- | 0,55 |
Motore sega circolare Saw motor | kW | 2,2 | 2,2 | 2,2 | 2,2 | 2,2 | 2,2 |
Motore fresa di finitura Cutter motor | kW | 1,1 | 1,1 | 1,1 | 1,1 | 1,1 | 1,1 |
| Regolazione velocità avanzamento Feeding speed adjustment | m/min | -- | 0 ÷ 20 | -- | 0 ÷ 20 | -- | 0 ÷ 20 |
| Pressione d’esercizio aria compressa Compressed air pressure | bar | 6 ÷ 8 | 6 ÷ 8 | 6 ÷ 8 | 6 ÷ 8 | 6 ÷ 8 | 6 ÷ 8 |
| Consumo aria compressa Compressed air consumption | NI/cycle Zyclus | 2 | 2 | 2 | 2 | 2 | 2 |
| Peso Weight | Kg | 1100 | 1200 | 1450 | 1550 | 1750 | 1850 |
